9.7 Expert Score

be quiet! Dark Power 13 850W, 80 Plus Titanium Efficiency, ATX 3.0, PCIe 5, Modular, Power Supply

Add to compareAdded to compare0
In stock
Bizgamers Choice for Brand:

Lowest Prices as from:
$249.90

About Item
  • 80 PLUS Titanium efficiency (up to 95.4%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
  • Improved frameless Silent Wings fan for virtually inaudible operation
  • Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
  • Overclocking key switches between four 12V rails and one massive 12V rail

LOWEST OFFERS

Product Information

General
Brand

be quiet!

Model Name

BN660

Specification
Connector Type

atx,pcie

Maximum Power

850 watts

Cooling Method

Air

Connectors

1 X ATX 20 + 4 Pin, 1 X PCI Express 16 Pin (12VHPWR), 12 X Serial ATA power supply, 2 X +12V (Power supply P8 – 2 x P4), 4 X PCI Express 6 + 2 Pin

Product Dimensions

‎6.89 x 5.91 x 3.39 inches

Weight

‎9.04 pounds

Product Review

9.7Expert Score
be quiet! Dark Power 13 850W, 80 Plus Titanium Efficiency, ATX 3.0, PCIe 5, Modular, Power Supply: Expert Review
The Dark Power 13 850W from be quiet! is a high-end 80+ Titanium certified power supply. It offers an efficiency of up to 95.8%, a level that makes it the ultimate reference.
Easy to install
10
Noise level
9.3
PROS
  • Full power at 47°C
  • ATX v3.0 and PCie 5.0 ready
  • 12VHPWR connector (600W)
  • High build quality
  • Highly efficient
  • Silent operation
  • High enough PF readings at 115V
  • Decent ripple suppression
  • Properly set OPP and OCP on the minor rails
  • Long hold-up time
  • Low vampire power at 115V
  • ALPM support
  • Fully modular
  • Adequate distance (150mm) between peripheral connectors
  • FDB fan
  • Ten-year warranty
CONS
  • Expensive
  • Not impressive overall performance
  • High OCP triggering points on all rails
  • Low PF at 230V
  • Increased inrush currents at 230V
  • 5VSB rail needs an efficiency boost
  • Only two 4-pin Molex connectors

Product Description

Description

The be quiet! Dark Power 13 850W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.

  • 80 PLUS Titanium efficiency (up to 95.4%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
  • Improved frameless Silent Wings fan for virtually inaudible operation
  • Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
  • Overclocking key switches between four 12V rails and one massive 12V rail
  • Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
  • Modular cable management for maximum convenience
  • 10-year manufacturer’s warranty.

80 Plus Titanium Certified

80 Plus Titanium Certified

Dark Power 13 850W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

Future Proof Your System

Dark Power 13 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

The New Standard of Power

Dark Power 13 offers 850W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

Innovative Cooling Concept

Frameless Silent Wings Fan

The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimised fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.

Innovative Cooling Concept

The split fan inlet of the Dark Power 13 850W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

Ready for Overclocking

Dark Power 13 850W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.

World Class Topology

World Class Topology

With an active rectifier and full bridge LLC technology Dark Power 13 850W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

Japanese 105°Capacitors

Only the best components are used in Dark Power 13 850W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.

Highest Convenience and Best Connectivity

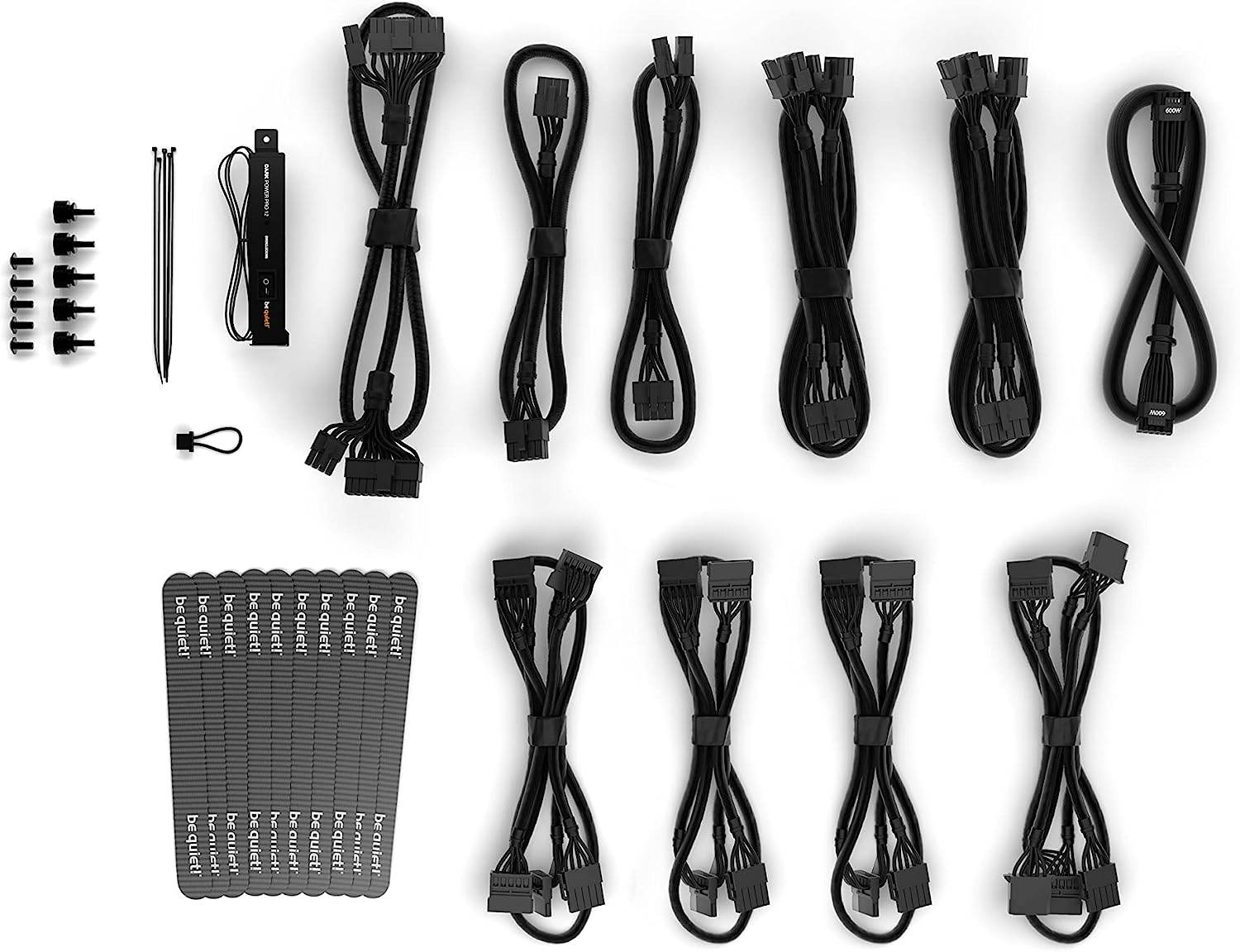

Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
